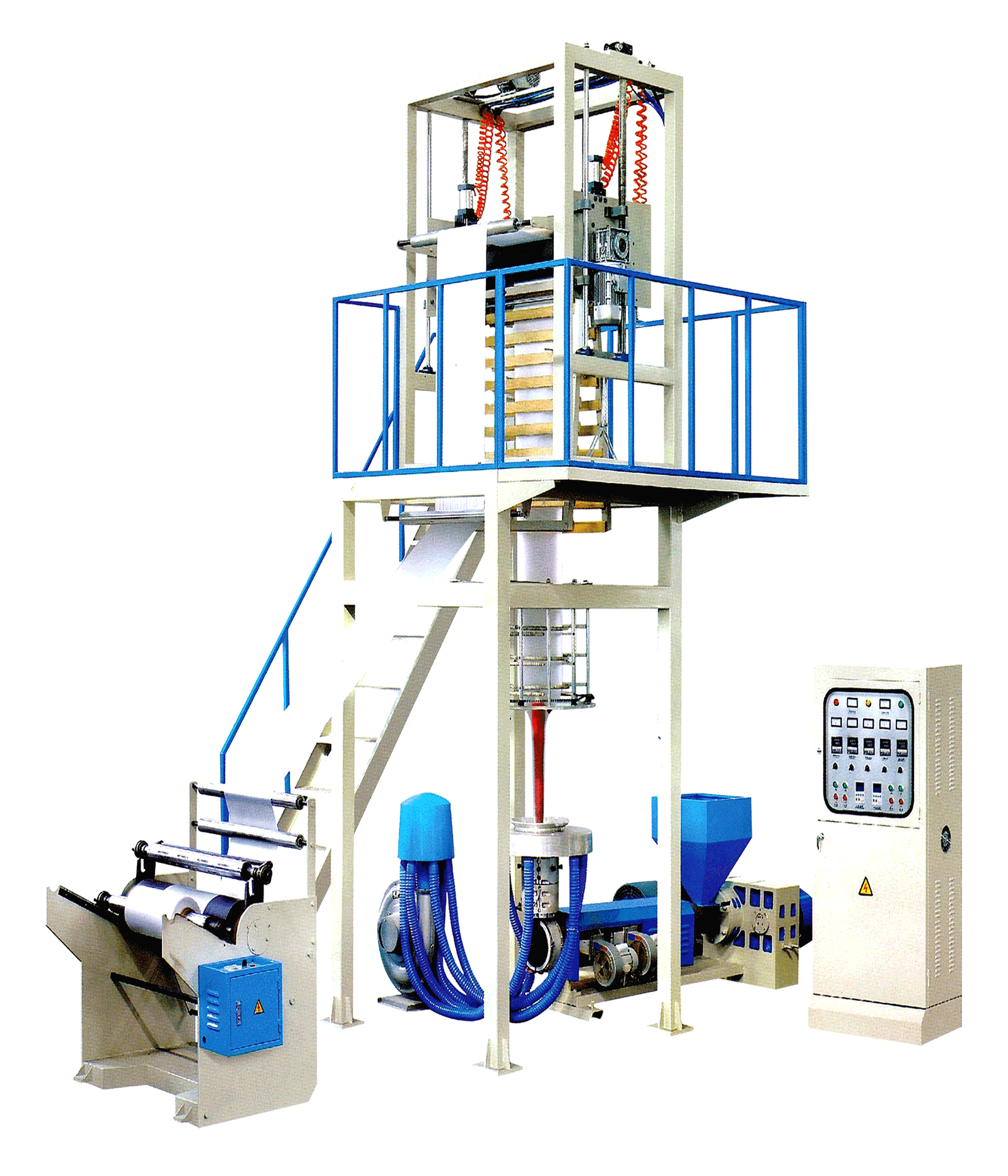

HDPE Film Blowing Machine
This machine is suitable for blowing HDPE Film blowing. By using this series machine you got low consumption befit for production HDPE tube.
Main Technical Parameters
| Model | SJ-A50 | SJ-A55 | SJ-A60 | SJ-A65 |
| Suitable Materials | HDPE | HDPE | HDPE | HDPE |
| Max Film Width (mm) | 100-600 | 200-800 | 300-1000 | 4-1200 |
| Film Thickness (mm) | 0.01-0.2 | 0.01-0.2 | 0.01-0.2 | 0.01-0.2 |
| Max Output (kg/hr) | 35 | 50 | 65 | 80 |
|
Extruder |
||||
| Screw Diameter (mm) | Ø50 | Ø55 | Ø60 | Ø65 |
| Screw L/d Ratio | 28:1 | 28:1 | 28:1 | 28:1 |
| Screw Material | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala |
| Cylinder Material | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala |
| Cylinder Cooling Fan | 180w×2 | 180w×2 | 180w×2 | 180w×3 |
| Driving Motor Power | 11 | 15 | 18.5 | 22 |
| Temperature control | 3 | 3 | 3 | 4 |
| Heating Power (kW) | 11 | 13 | 19 | 21 |
| Total Power Power (kW) | 25 | 32 | 40 | 45 |
|
Die Unit |
||||
| Die Size | 60 | 80 | 100 | 120 |
| Temperature control zone | 3 | 3 | 3 | 3 |
| Air Ring | 1 | 1 | 1 | 1 |
| Air Blower (kw) | 7 | 10 | 10 | 10 |
|
Take-up Unit |
||||
| Take-up Roller Width (mm) | Ø165×650 | Ø165×850 | Ø165×1100 | Ø165×1300 |
| Height Adjustable(mm) | 1000 | 1000 | 1000 | 1000 |
| Take-up Speed | 10-65 | 10-65 | 10-65 | 10-65 |
| Take-up Motor(kw) | 1.5 | 2 | 2 | 3 |
|
Winding Unite |
||||
| Winding Type | Surface Friction | Surface Friction | Surface Friction | Surface Friction |
| Winding Motor (n.m) | 5 | 10 | 10 | 16 |
| Winding Speed(m/min) | 10-65 | 10-65 | 10-65 | 10-65 |
| Overall Dimension (L×W×H)(m) | 4.8×1.9×4.1 | 5.5×2.1×3.8 | 6.5×2.3×4.2 | 6.5×2.5×4.6 |
| Machine Wait (T) | 1.5 | 2 | 2.3 | 2.6 |
| OPTIONAL EQUIPMENT | |
| 1)AUTO LOADER | |
| 2)DOUBLE WINDER | |
| 3)CORONA | |
| 4)AIR SHAFT | |
| 5)MANUAL MECHANICS SCREEN CHANGER | |
| 6)FULL AUTOMATIC WINDER | |
| 7)AUTOMATICALLY SUPPLY AIR | |
