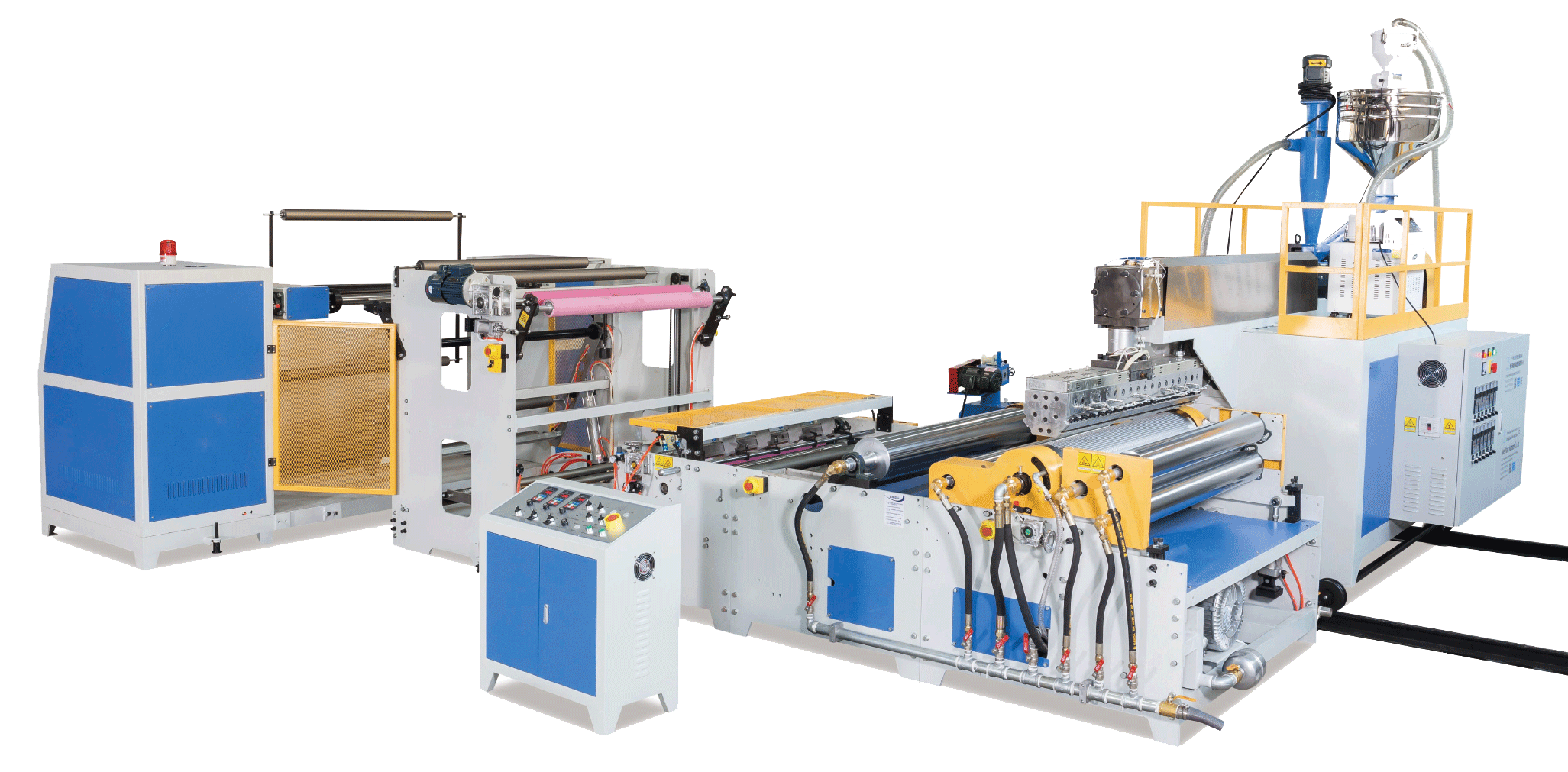

Bubble Film Making Machine
A Bubble Film Making Machine (also known as a Bubble Wrap Machine, Air Bubble Film Machine, or Inflatable Film Extrusion Line) is an industrial manufacturing system that continuously produces plastic bubble wrap—the ubiquitous cushioning material used for packaging. It does this by extruding molten plastic into a continuous sheet of film with regularly spaced air pockets (bubbles) trapped between layers.
Main Technical Parameters
Model |
Screw (mm) |
Film Width (mm) |
Layer |
Output (kg) |
Main Motor (kW) |
HBF-1000/2 |
Ø 60 |
1000 |
2 |
50 |
15 |
HBF-1200/2 |
Ø 65 |
1200 |
2 |
65 |
15 |
HBF-1500/2 |
Ø 75 |
1500 |
2 |
80 |
18.5 |
HBF-2000/2 |
Ø 90 |
2000 |
2 |
100 |
37 |
HBF-1000/3 |
Ø 55/55/55 |
1000 |
3 |
55-130 |
15/15/15 |
HBF-1200/3 |
Ø 55/55/55 |
1200 |
3 |
65-150 |
15/15/15 |
HBF-1500/3 |
Ø 75/65/65 |
1500 |
3 |
80-180 |
22/18.5/15 |
HBF-2000/3 |
Ø 85/65/65 |
2000 |
3 |
110-260 |
30/18.5/18.5 |
HBF-2500/3 |
Ø 85/75/75 |
2500 |
3 |
120-300 |
30/22/22 |
HBF-3000/3 |
Ø 90/85/85 |
3000 |
3 |
140-380 |
37/30/30 |
HBF-1000/5 |
Ø 55/55/55 |
1000 |
5/7 |
65-135 |
15/15/15 |
HBF-1200/5 |
Ø 55/55/55 |
1200 |
5/7 |
85-140 |
15/15/15 |
HBF-1500/5 |
Ø 75/65/55 |
1500 |
5/7 |
100-180 |
22/22/15 |
HBF-2000/5 |
Ø 85/65/65 |
2000 |
5/7 |
160-230 |
30/30/22 |
HBF-3000/5 |
Ø 90/85/85 |
3000 |
5/7 |
200-290 |
37/37/30 |
OPTIONAL EQUIPMENT
