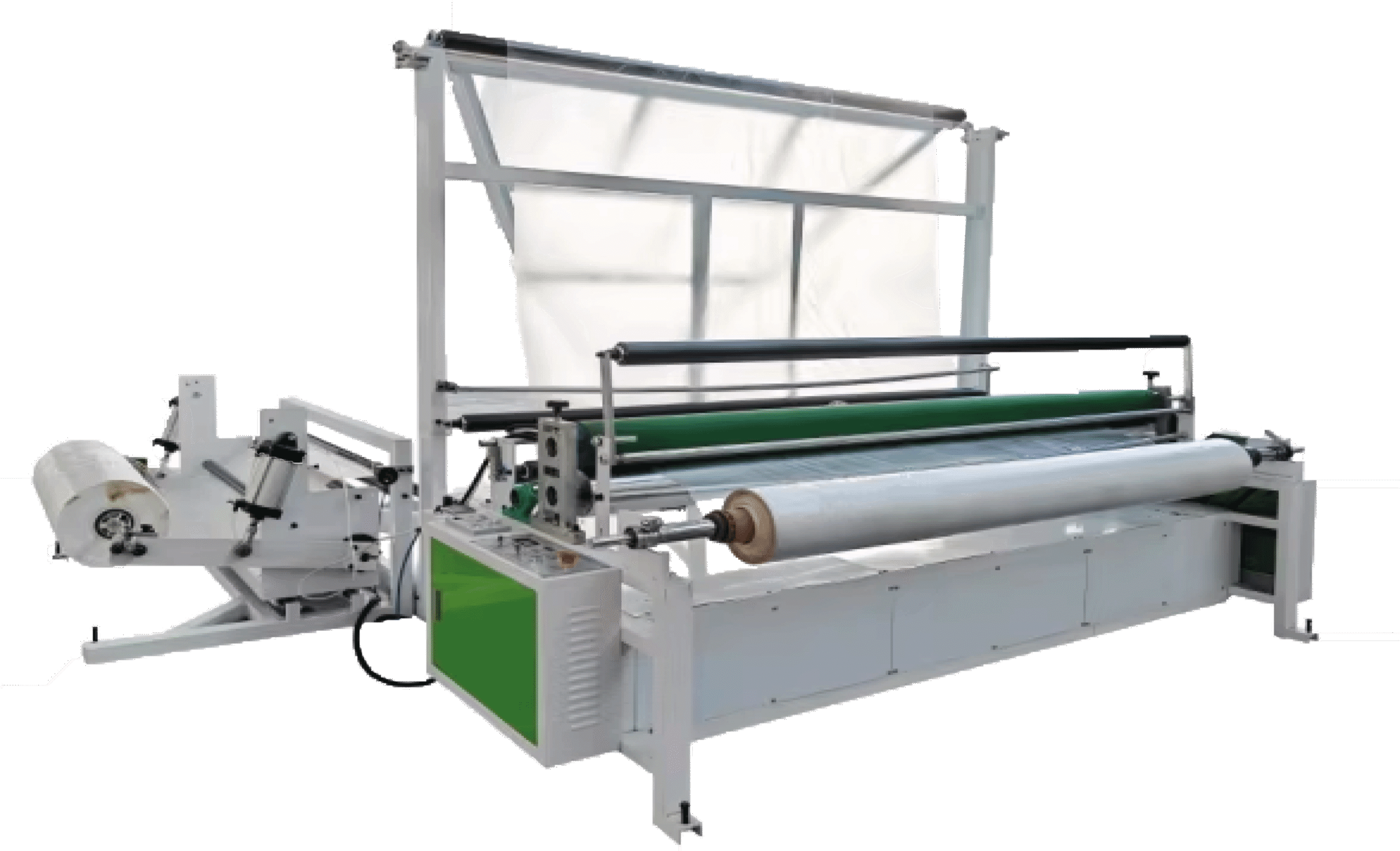

Film Un-Folding Device
PE tube roll has 2 layers. It you want to use one layer film with large width, you will need unfolding machine. It can cut one side of the tube film, then unfold it to double width.
Main Technical Parameters
Model |
UF-600/800/1000/1200/1500 mm |
Maximum unwind width |
600/800/1000/1200/1500 mm |
Maximum rewind width |
1200/1600/2000/2400/3000 mm |
Speed |
20–850 m/min |
Suitable material |
BOPP, PE, Pet, PP, PAPER, NON WOVEN, Fabric |
Bag machine power supply |
220V, 50Hz |
Total power |
3–7 kW |
Rewinder diameter |
600 mm |
Main structure |
Steel channel |
Edge equalization function |
EPC (Optional) |
Unwind and rewind |
Manual / Magnetic powder brake (Optional) |
