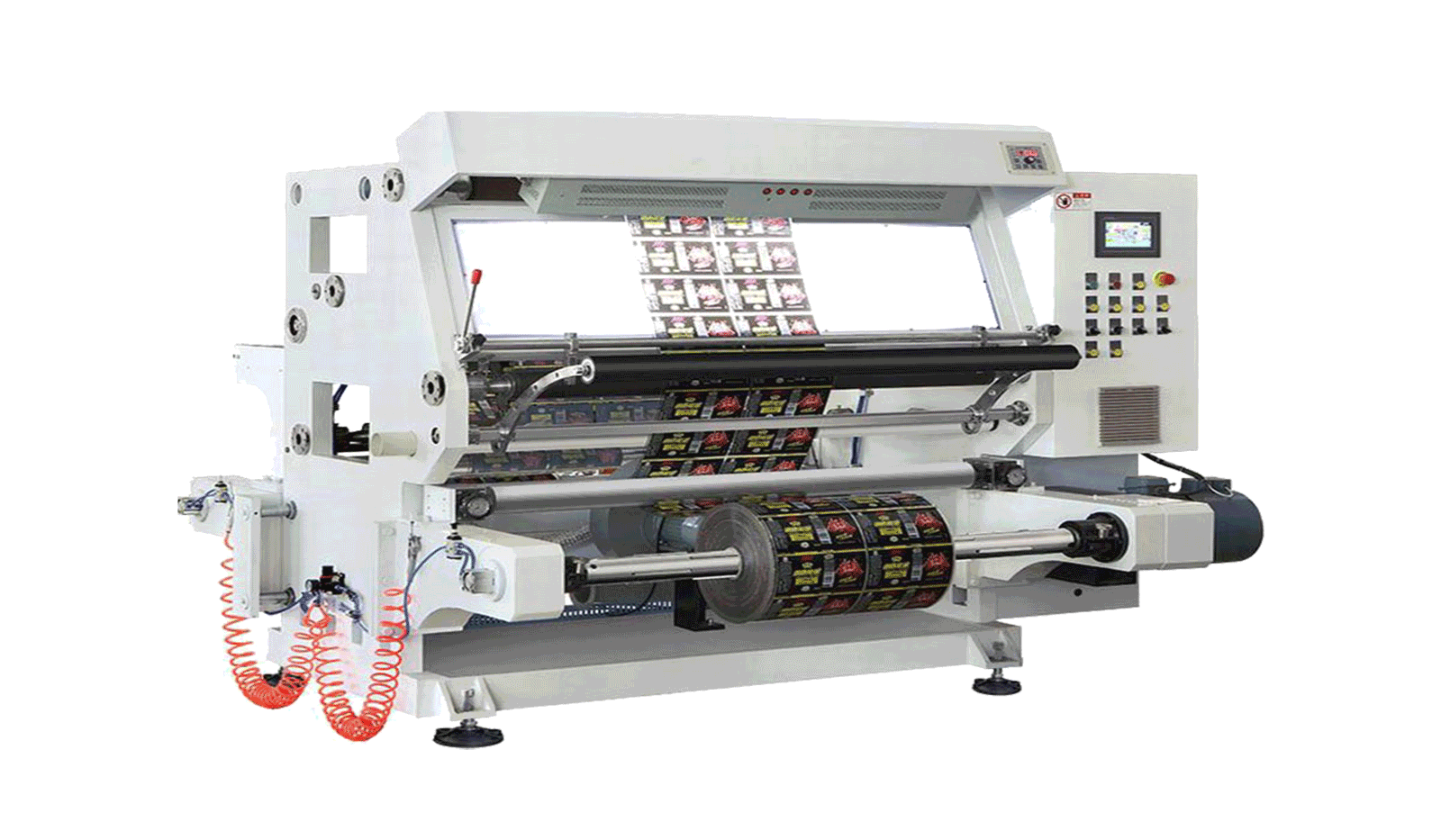

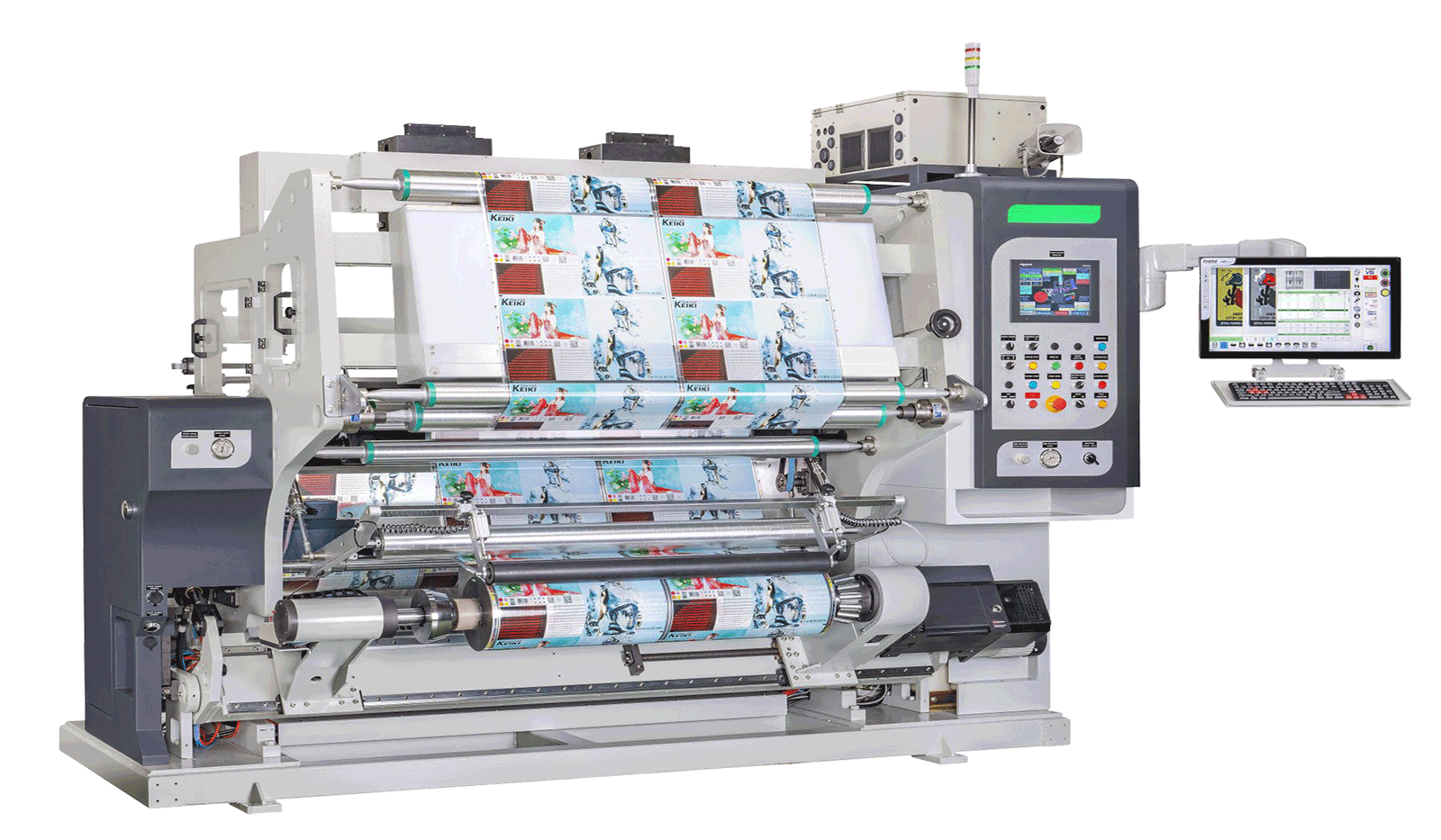

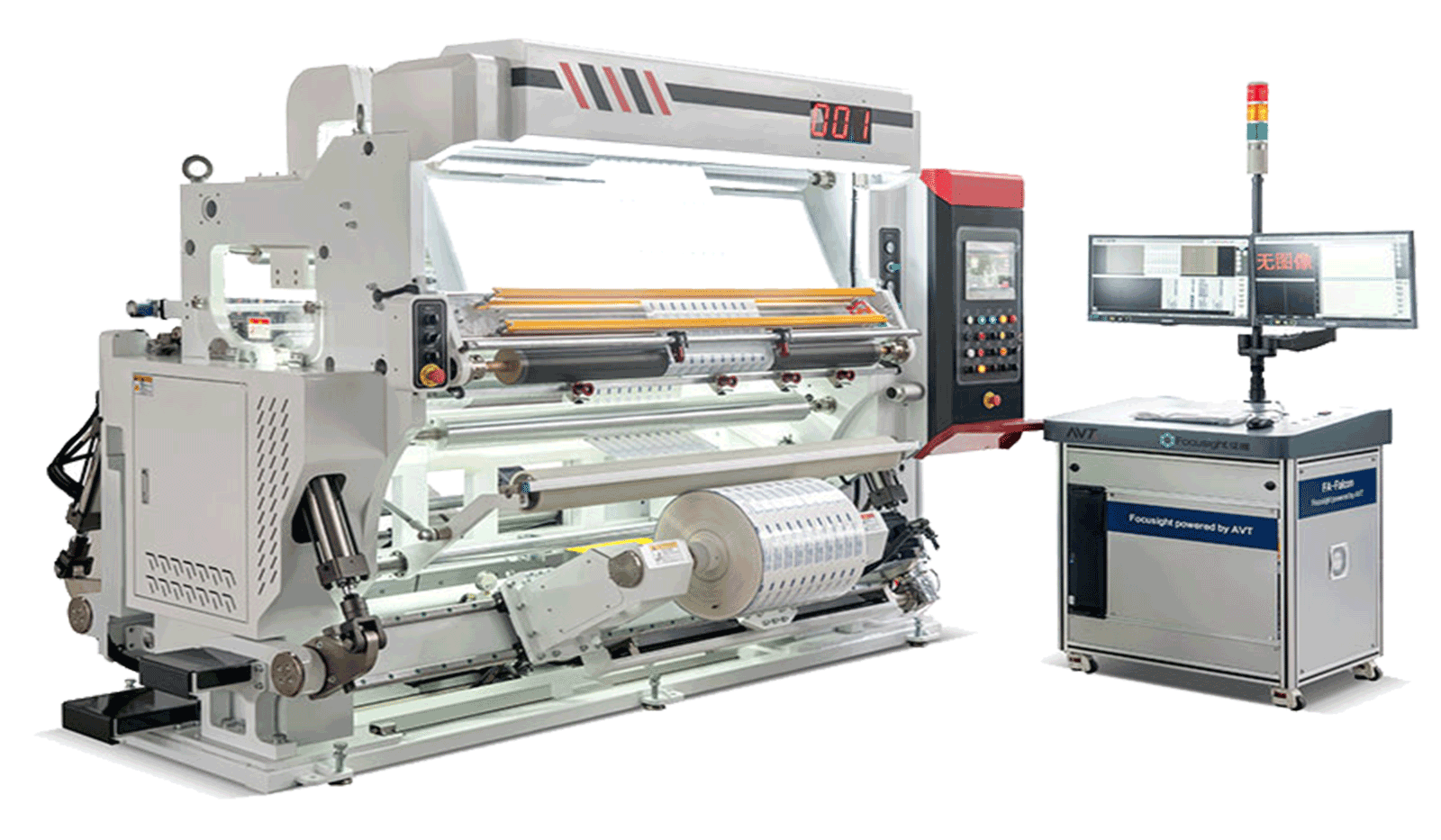

Full Automatic High Speed Inspection Doctoring Rewinding Machine

A Full Automatic High-Speed Inspection Doctoring Rewinding Machine is a sophisticated industrial system designed to automatically inspect, repair (doctor), and rewind flexible web materials (like plastic film, paper, nonwovens, laminates, or foil) at high production-line speeds. Its primary purpose is to ensure final product quality, maximize usable yield, and maintain process continuity by identifying and addressing defects in real-time without stopping the machine.

The name breaks down into its key functions:

  • Full Automatic: Operates with minimal human intervention, using sensors and programmable logic.

  • High Speed: Designed to match or exceed the output speed of primary production lines (e.g., film extrusion, printing presses).

  • Inspection: Electronically scans the material for flaws.

  • Doctoring: The act of marking, cutting out, or splicing to remove defective sections.

  • Rewinding: Creates a new, flawless master roll from the inspected and corrected web.

This machine is suitable to inspect and rewind bopp, pet, cpp, pvc, aluminium foil and paper with printing

Main Technical Parameters

MODEL
ZTM-E
ZTM-H
ZTM-S
Machine Type
Economical
High speed
Servo controlled
‘Max. Rewinding Speed (m/min)
10~300
10~400
10~300
Jumbo roll width (mm)
650,800,1000,1300
650, 800,1000,1300
650, 800, 1000, 1300
Rewinding & Unwinding Diameter
Ø800 (mm)
Ø 800 (mm)
Ø 800 (mm)
Paper core size
3 inch (75 mm)
3 inch (75mm)
3 inch (75 mm)
NOTE: BECAUSE OF TECHNICAL IMPROVEMENTS, MACHINERY APPERANCE TECHNICAL PRAMETER MAY BE CHANGE WITHOUT NOTICE
