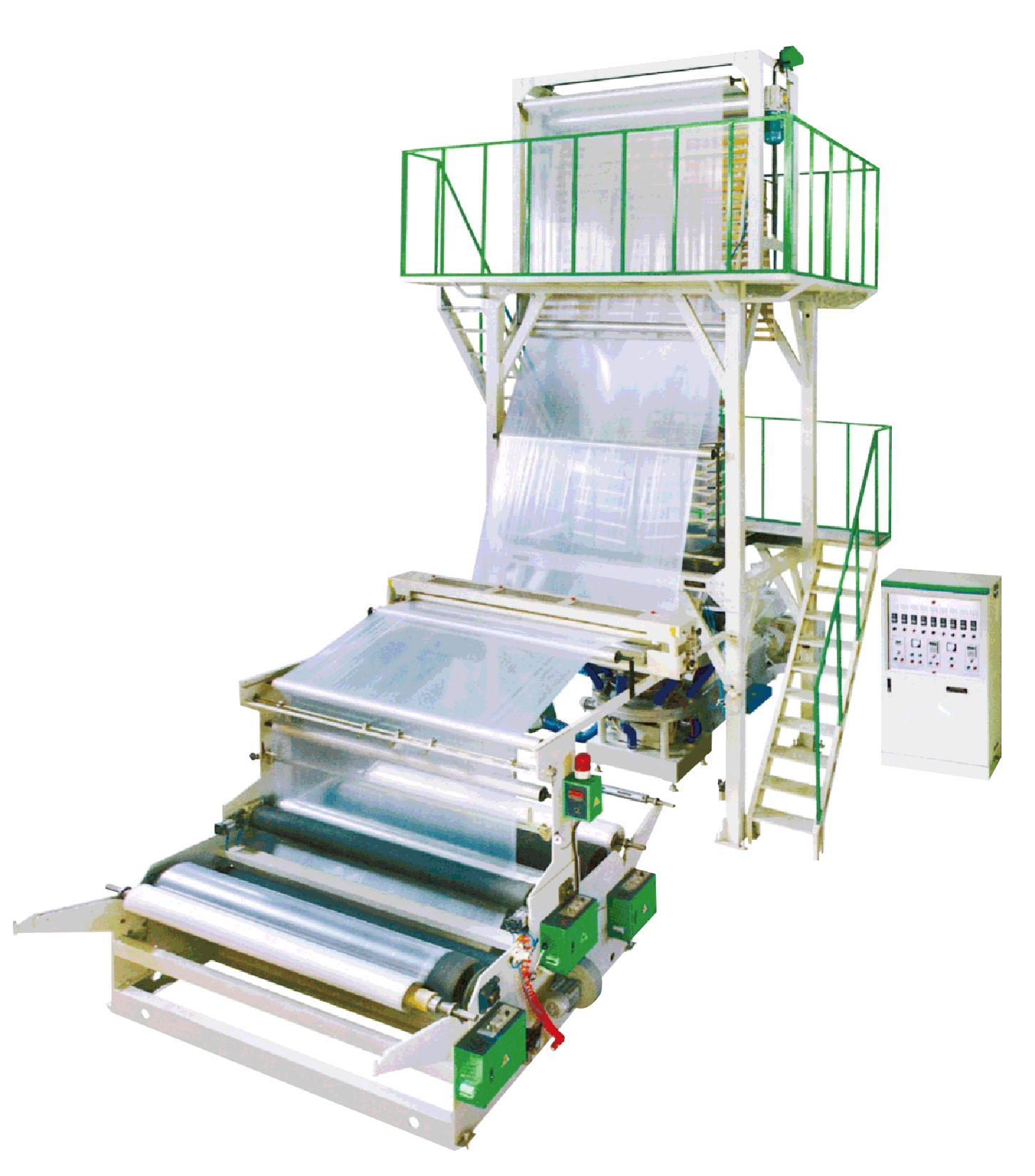

LDPE Film Blowing Machine
LDPE/LLDPE
This machine is suitable for blowing LLDPE/LDPE Film blowing.This machine is made for smoothly blowing LLDPE / LDPE tube effectively.
Main Technical Parameters
| Model | SJ-C75 | SJ-C90 | SJ-C105 | SJ-C120 |
| Suitable Materials | LDPE-LLDPE | LDPE-LLDPE | LDPE-LLDPE | LDPE-LLDPE |
| Max Film Width (mm) | 1500 | 2000 | 2500 | 300 |
| Film Thickness (mm) | 0.02 | 0.02-0.2 | 0.02-0.15 | 0.02-0.15 |
| Max Output (kg/hr) | 120 | 160 | 190 | 220 |
|
Extruder |
||||
| Screw Diameter (mm) | Ø75 | Ø90 | Ø105 | Ø120 |
| Screw L/d Ratio | 28:1 | 28:1 | 28:1 | 28:1 |
| Screw Material | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala |
| Cylinder Material | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala |
| Cylinder Cooling Fan | 180w×4 | 180w×4 | 180w×4 | 180w×5 |
| Driving Motor Power | 30-37 | 37-45 | 54-70 | 70-90 |
| Temperature control | 3 | 3 | 3 | 4 |
| Average consume(kw) | 46 | 60 | 78 | 95 |
|
Blow Unit |
||||
| Temperature control zone | 3 | 3 | 3 | 3 |
| Air Ring | 1 | 1 | 1 | 1 |
| Air Blower (kw) | 7 | 10 | 10 | 10 |
|
Take-up Unit |
||||
| Take-up Roller Width (mm) | Ø165×1600 | Ø165×2100 | Ø165×2600 | Ø165×3200 |
| Height Adjustable(mm) | 1000 | 1000 | 1000 | 1000 |
| Take-up Speed | 10-65 | 10-65 | 10-65 | 10-65 |
| Take-up Motor(kw) | 1.5 | 2 | 2 | 3 |
|
Winding Unite |
||||
| Winding Type | Surface Friction | Surface Friction | Surface Friction | Surface Friction |
| Winding Motor (n.m) | 16 | 20 | 25 | 30 |
| Winding Speed(m/min) | 10-65 | 10-65 | 10-65 | 10-65 |
| Overall Dimension (L×W×H)(m) | 5.2×2.8×6 | 6.2×3.4×8 | 6.2×4×9 | 6.8×4.5×10 |
| Machine Wait (T) | 4 | 8 | 10 | 12 |
| OPTIONAL EQUIPMENT | |
| 1)AUTO LOADER | |
| 2)DOUBLE WINDER | |
| 3)CORONA | |
| 4)AIR SHAFT | |
| 5)MANUAL MECHANICS SCREEN CHANGER | |
| 6)FULL AUTOMATIC WINDER | |
| 7)AUTOMATICALLY SUPPLY AIR | |
