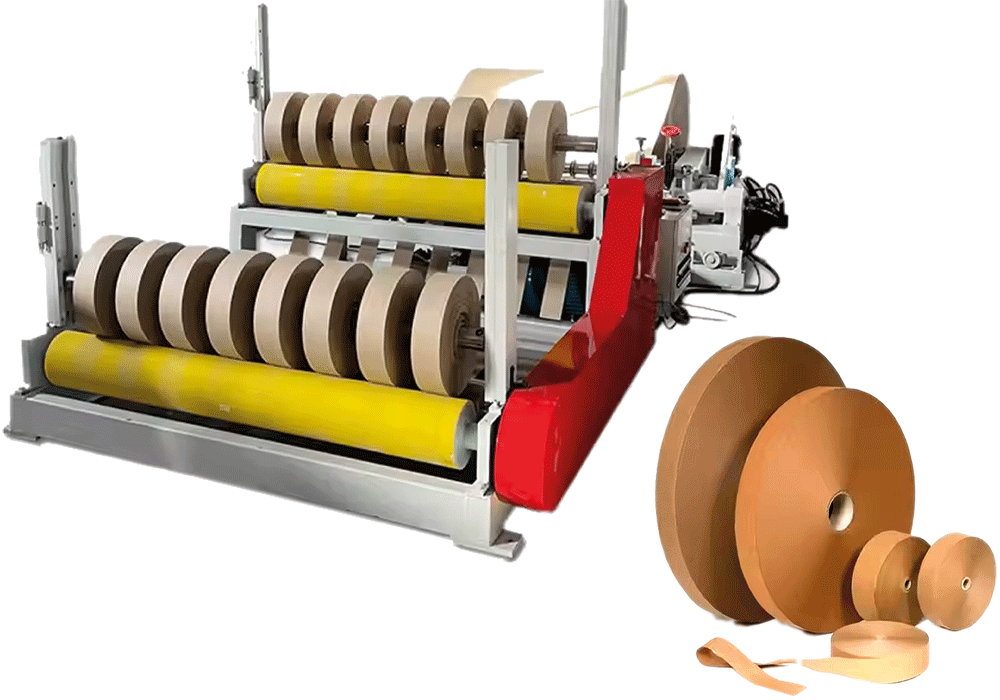

Paper Slitting And Rewinding Machine
It adopts shaftless loading, double air inflation shaft rewinding, shaftless loading, manual unloading and optional automatic knife adjustment. It has fast speed, tight rewinding and no burrs.
It is a machine that performs two primary, continuous operations in-line:
-
Slitting (Cutting): A wide “master” or “jumbo” roll (the input) is precisely slit longitudinally (along its length) into multiple narrower strips using various cutting mechanisms (e.g., razor blades, shear cut, score cut).
-
Rewinding (Winding): The resulting strips are then neatly and tightly rewound onto individual cores to form multiple, finished “slit” rolls (the output) ready for use in subsequent processes or for end-users.
Main Technical Parameters
Model |
UCPS-1600 |
Max. Paper Roll Width (mm) |
1600 |
Min. Paper Width (mm) |
800 |
Cutting Width Range (mm) |
40–1300 |
Machine Power (kw) |
7.5 |
Cutting Blades (pcs) |
21 |
Machine Weight (kg) |
3000 |
Dimensions (L × W × H) (M) |
3.3 × 1.2 × 1.74 |
NOTE: BECAUSE OF TECHNICAL IMPROVEMENTS, MACHINERY APPERANCE TECHNICAL PRAMETER MAY BE CHANGE WITHOUT NOTICE
