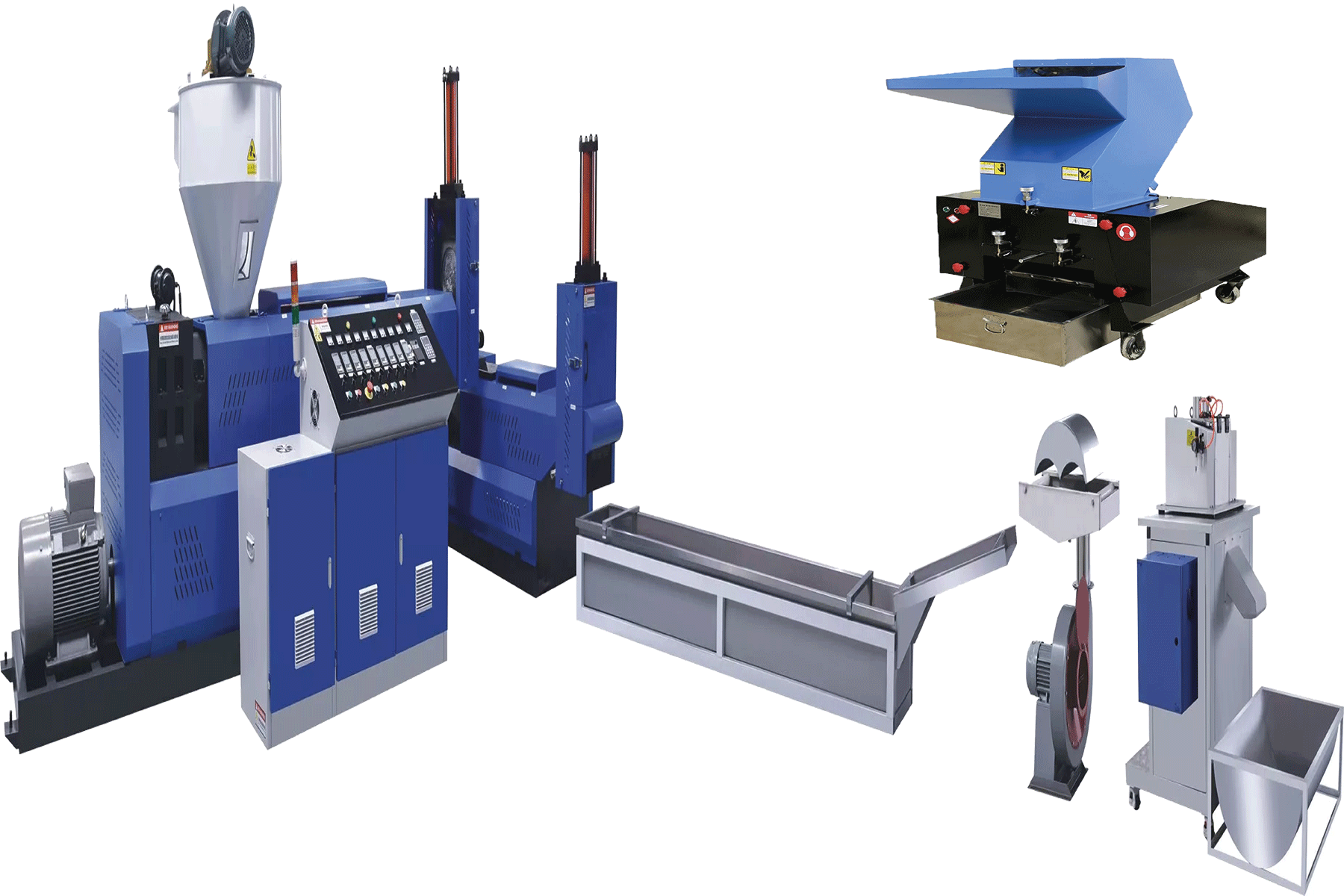

Plastic Recycle Machine Double Screw

A Plastic Recycle Machine Double Screw is an advanced extrusion system that uses two intermeshing, co-rotating screws housed in a figure-eight shaped barrel to process plastic waste. It excels at intensive mixing, compounding, and devolatilization, making it the preferred choice for challenging, heterogeneous, or contaminated recycled feeds that require superior homogenization and precise thermal/mechanical control. Unlike a single-screw extruder that primarily conveys and melts, a twin-screw’s primary function is to aggressively mix, shear, and chemically/physically modify the plastic melt while conveying it.

Main Technical Parameters

Model
ZLJ-100+100
ZLJ-120+120
ZLJ-140+120
ZLJ-160+140
ZLJ-200+180
Production Capacity (kg/hr)
80-120
150-200
200-300
300-400
400-500
Gear Box 1/Gear Box 2
173 / 173
200 / 173
225 / 180
280 / 180
315 / 200
Diameter Screw1/ Screw 2
Φ100 / Φ120
Φ120 / Φ120
Φ140 / Φ120
Φ160 / Φ140
Φ200 / Φ180
Motor (kw)
22 / 15
37 / 15
45 / 15
55 / 18.5
75 / 22
Hydraulic Screen Changer Size (mm)
220×220 / 220×220
220×220 / 220×220
250×250 / 250×250
250×250 / 250×250
300×300 / 300×300
Drying Fan (kw)
2.2
2.2
2.2
2.2
2.2
Hob Pelletizer (kw)
Water Tank Size (L×W×H) (M)
3.8×0.48×0.63
3.8×0.48×0.63
3.8×0.48×0.63
3.8×0.48×0.63
3.8×0.48×0.63
Total Power (kw)
60
75
90
110
130
Dimension (L×W×H) (M)
8.2×1.6×1.8
8.2×1.6×1.8
8.8×1.6×1.8
NOTE: BECAUSE OF TECHNICAL IMPROVEMENTS, MACHINERY APPERANCE TECHNICAL PRAMETER MAY BE CHANGE WITHOUT NOTICE
