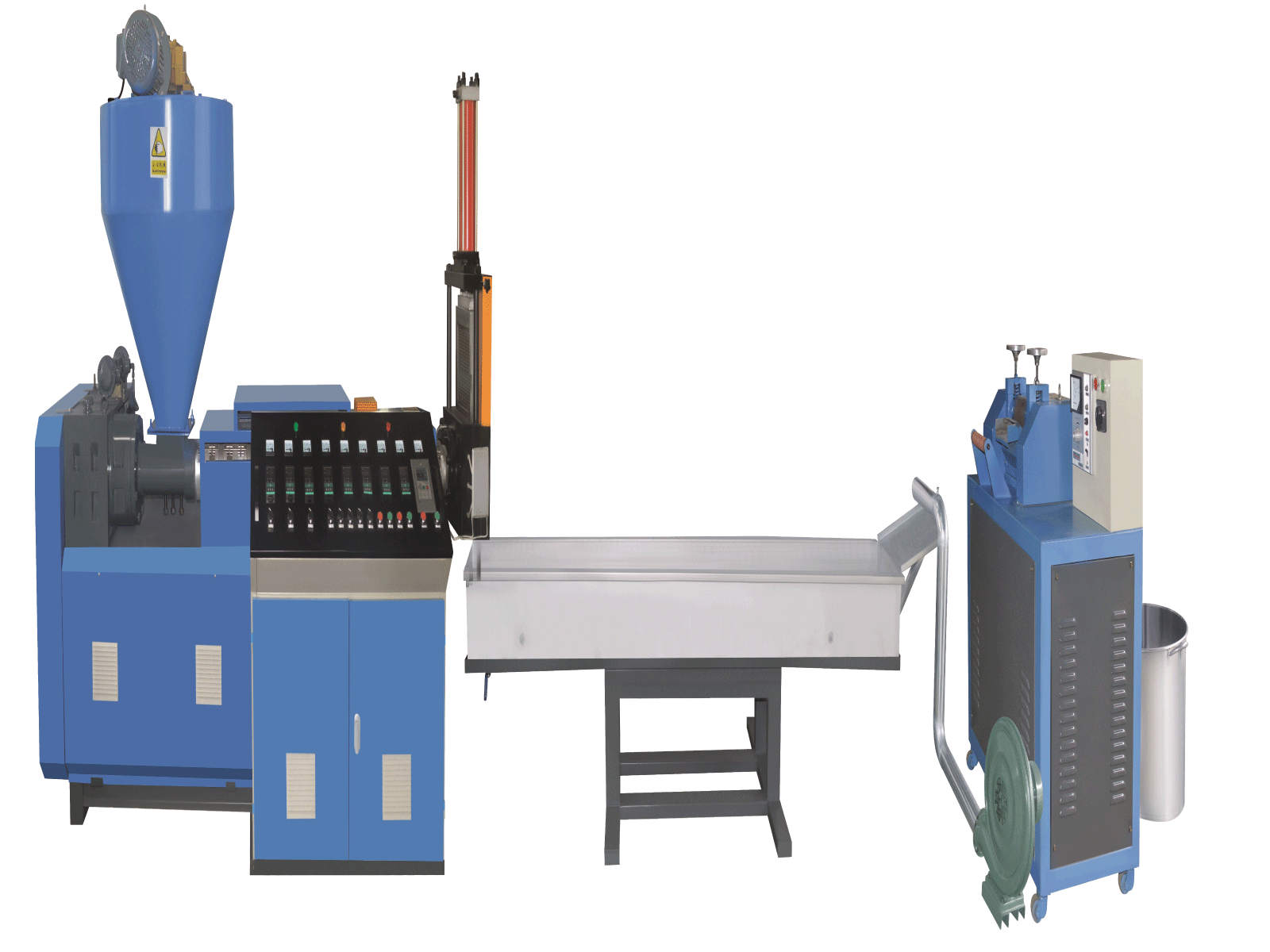

Plastic Recycle Machine Single Screw
A Plastic Recycle Machine Single Screw is the most common and fundamental type of extrusion equipment used in plastic recycling. Its primary function is to continuously convey, melt, homogenize, and pump shredded plastic waste (flakes or pellets) through a heated barrel using a single, rotating screw. It transforms inconsistent plastic feedstock into a uniform, viscous melt that can be reformed into new shapes, most commonly by being forced through a die to create strands, pellets, or profiles.
Main Technical Parameters
Model |
ZLJ-100 |
ZLJ-120 |
ZLJ-140 |
ZLJ-160 |
ZLJ-200 |
Production Capacity (kg/hr) |
80-120 |
150-200 |
200-300 |
300-400 |
400-500 |
Gear Box |
173 |
200 |
225 |
280 |
315 |
Screw Diameter (mm) |
Φ 100 |
Φ 120 |
Φ 140 |
Φ 160 |
Φ 200 |
Motor (Kw) |
22 |
37 |
45 |
55 |
75 |
Hydraulic Screen Changer Size |
220×220 mm |
220×220 mm |
250×250 mm |
250×250 mm |
300×300 mm |
Drying Fan (kw) |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
Hob Pelletizer (kw) |
– |
– |
– |
– |
– |
Water Tank Size (L×W×H) (M) |
3.8×0.48×0.63 |
3.8×0.48×0.63 |
3.8×0.48×0.63 |
3.8×0.48×0.63 |
3.8×0.48×0.63 |
Total Power (kw) |
45 |
55 |
70 |
85 |
105 |
Machine Dimension (L×W×H) (M) |
8.2×1.6×1.8 |
8.5×1.6×1.8 |
8.8×1.6×1.8 |
9.2×1.8×2.0 |
1.5×2.0×2.0 |
