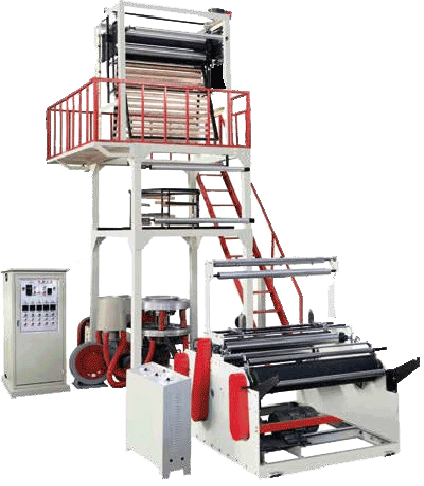

PE Film Blowing Machine
LDPE/LLDPE/HDPE
This machine is suitable for blowing LLDPE/LDPE/HDPE Film blowing.The finished plastic thin film is widely used for supermarket bags, garbage bags, various plastic package bags, shopping bags,cote film and compound thin film.
Main Technical Parameters
| Model | SJ-G45 | SJ-G50 | SJ-G55 | SJ-G65 |
| Suitable Materials | LDPE-LLDPE-HDPE | LDPE-LLDPE-HDPE | LDPE-LLDPE-HDPE | LDPE-LLDPE-HDPE |
| Film Width (mm) | 200-600 | 300-800 | 400-1000 | 600-1300 |
| Film Thickness (mm) HD | 0.009-0.08 | 0.009-0.08 | 0.009-0.08 | 0.01-0.08 |
| Film Thickness (mm) LD | 0.02-0.15 | 0.02-0.15 | 0.02-0.15 | 0.02-0.15 |
| Max Output (kg/hr) HD | 55 | 70 | 85 | 110 |
| Max Output (kg/hr) LD | 60 | 80 | 90 | 120 |
|
Extruder |
||||
| Screw Diameter (mm) | Ø45 | Ø50 | Ø55 | Ø65 |
| Screw L/d Ratio | 28:1 | 28:1 | 28:1 | 28:1 |
| Screw Material | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala |
| Cylinder Material | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala | Sacm-645/38 Crmoala |
| Cylinder Cooling Fan | 180w×2 | 180w×2 | 180w×2 | 180w×3 |
| Driving Motor Power | 15 | 18.5 | 22 | 37 |
| Temperature control | 3 | 3 | 3 | 4 |
| Average consume(kw) | 18 | 26 | 31 | 45 |
|
Die Unit |
||||
| Die Size (mm) HDPE | 60/80 | 80/100 | 100/125 | 125/150 |
| Die Size (mm) LDPE | 150 | 180 | 250 | 300 |
| Temperature control zone | 3 | 3 | 3 | 3 |
| Air Ring | 1 | 1 | 1 | 1 |
| Air Blower (kw) | 2.2 | 3 | 5.5 | |
|
Take-up Unit |
||||
| Take-up Roller Width (mm) | Ø165×650 | Ø165×850 | Ø165×1100 | Ø165×1400 |
| Height Adjustable(mm) | 1000 | 1000 | 1000 | 1000 |
| Take-up Speed | 10-65 | 10-65 | 10-65 | 10-65 |
| Take-up Motor(kw) | 1.1 | 1.1 | 1.1 | 1.1 |
|
Winding Unite |
||||
| Winding Type | Surface Friction | Surface Friction | Surface Friction | Surface Friction |
| Winding Motor (n.m) | 5 | 10 | 10 | 16 |
| Winding Speed(m/min) | 10-65 | 10-65 | 10-65 | 10-65 |
| Overall Dimension (L×W×H)(m) | 5×2×4.5 | 5×2.2×5 | 5.5×2.5×5.5 | 5.8×2.8×6.5 |
| OPTIONAL EQUIPMENT | |
| 1)AUTO LOADER | |
| 2)DOUBLE WINDER | |
| 3)CORONA | |
| 4)AIR SHAFT | |
| 5)MANUAL MECHANICS SCREEN CHANGER | |
| 6)FULL AUTOMATIC WINDER | |
| 7)AUTOMATICALLY SUPPLY AIR | |
