CLING FILM EXRUDER MACHINE

CLING FILM EXTRUDER MACHINE

1. What is the work of this machine?

A Cling Film Extruder Machine is a specialized plastic processing system designed to produce thin, stretchable plastic films (commonly PVC, PE, or PP) that adhere to surfaces without adhesives. These films are widely used for food packaging, industrial wrapping, and agricultural applications due to their cling properties, transparency, and moisture resistance. This Machine manufactures thin, stretchable plastic films (typically PVC, PE, or PP) that cling to surfaces without adhesives. The process involves:

Melting & extruding plastic resin into a flat or tubular film.

Cooling & stretching the film to achieve desired elasticity and thickness.

Winding into rolls for packaging or industrial use.

Common applications: Food wrap, pallet covering, agricultural films.

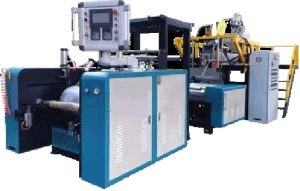

Fig. Cling Film Extruder Machine.

Key Components & Process:

Extruder: Melts plastic resin (e.g., LDPE, PVC) using a rotating screw and heated barrel, converting pellets into a molten polymer.

Die Head: Shapes the molten plastic into a flat or tubular film. For cling films, a flat die (cast extrusion) or annular die (blown extrusion) is used.

Cooling System:

1. Cast Film: Uses chilled rollers to solidify the film quickly for uniform thickness.
2. Blown Film: Employs air rings to cool an inflated bubble before collapsing it into layers.
3. Stretching & Embossing: Some machines include rollers to stretch the film for elasticity or add textures (e.g., matte finish).
4. Winding Unit: Cuts and rolls the finished film into logs or jumbo rolls for further processing.

Types of Cling Film Extruders:

Blown Film Extruder: Produces tubular films with high clarity and stretch (ideal for food wrap).

Cast Film Extruder: Creates flat films with precise thickness control (used for industrial wraps).

Multi-Layer Extruder: Combines 2–5 layers (e.g., PE/PP) for enhanced barrier properties.

Applications:

Food Packaging: Preserving freshness in meats, cheeses, and produce.

Medical/Industrial: Sterile wrapping, pallet stabilization.

Agriculture: Greenhouse films, soil mulching.

Key Features:

Material Compatibility: Processes PVC, LDPE, LLDPE, and biodegradable resins.

Automation: Advanced models include auto-thickness control and winders.

2. How many workers are needed to operate it?

Basic operation: 1-2 operators (for material loading, monitoring controls, and quality checks).

Automated lines: May require only 1 worker (with automatic thickness control and winding systems).

Full production line: 2-3 workers if including printing, slitting, or packaging.

3. What is the production capacity?

Speed: Ranges from 20–25 kg/hour, depending on the model.

Daily output: Up to 200 kg/day.

Film width: 300mm–800mm.

Film Thickness: 0.008-0.03 mm.

4. What is the electricity cost?

Power consumption: 25-80 kW/hour (depending on size and output)

Energy-saving models: 15-30% less power usage (with inverter-controlled motors).

Estimated hourly cost: $$-$8/hour (varies by local electricity rates).

5. How much space is needed to install this machine?

Machine Dimension:

Compact models: ~5m (L) × 3m (W) × 2.5m (H).

Industrial lines: Up to 15m (L) × 6m (W) × 4m (H) (including auxiliary equipment).

Additional space: Requires 1-2m around the machine for operation and maintenance.

6. Where can we buy this machine?

Ultimate Corporation 18/2, Sahibagh, Savar, Dhaka-1340, Bangladesh.

7. What is the origin of this machine?

Primary manufacturing countries: China (80% of global supply), Taiwan, Germany (for high-end models).

Key production hubs: Wenzhou, Zhejiang, Guangdong (China).

8. Do we supply only this machine?

Yes, we supply this machine.

Typical auxiliary equipment available:

1. Film blowing units
2. Printing machines
3. Slitting/rewinding systems
4. Packaging machines

Now we supply various types of machine, not just Cling Film Extruder Machine.

9. How many types of machines do we supply?

Our Supplying Machinery:

Poly Project:

1. LLDPE/LDPE/HDPE/PE/ Film blowing machine
2. Corona Treat machine for film blowing
3. Bottom Cutting Machine
4. Side sealing machine
5. 4 side sealing bag
6. Central sealing bag making machine
7. Pouch bag making machine
8. biodegradable bag making machine
9. (Flexographic) printing machine
10. T Shirt Bag Making Machine
11. Garbage making machine
12. Hand glove making machine
13. Solvent base / Solvent less Lamination machine
14. Roto gravure printing Machine
15. Film Slitting machine
16. Film inspection / Doctoring machine
17. Folding Device

Biodegradable Bag Project:

Biodegradable Film Blowing Machine

Biodegradable Bag Making Machine

Biodegradable Film Printing Machine

Gum Tape project:

1. Semi Automatic Gum Tape Cutting Machine
2. Full Automatic Gum Tape Cutting Machine
3. Gum Tape Printing Machine
4. Gum Tape Coating Machine

 Elastic & needle Loom Project Machine:

1. Sewing Thread cone winding Machine (Manual + Semi Auto)
2. Soft Cone rewinding Machine

PVC / PET project:

1. PVC Shrink film blowing machine
2. PVC shrink film blowing machine for bottle label
3. PVC / PET collar insert & butterfly making machine

Die Cutting & Paper Cutting Machine.

Our Supplying Raw Materials:

1. Plastic resin (PP /LDPE/LLDPE/EVA/HIPS /GPPS (Grade: Film/Injection/Fiber/Yarn/Pipe)
2. OPP Gum Tape
3. Adhesive Tape
4. Ink
5. Thinner
6. Paper (Duplex)
7. Textured Yarn

10. What is the warranty period?

Usually 1 year || 1.5 years || 2 years  warranty for all machine depend on type.

11. Do you have any technicians?

Yes, we have local & international technicians for:

1. Installation
2. Training
3. After-sales service

12. How many years are you in this business?

Ultimate Corporation has been in the plastic machinery trading & service business for several years, with wide experience in Bangladesh market.

13. Who is the boss of this company?

Our company is lead by Engr. Mahabub Hossen Juel.

14. Do you have stock in Bangladesh?

Yes, we maintain some stock in our local warehouse. For customized machines, order-based supply is available.

15. Are you supplying Taiwan machines?

Yes, we supply Taiwan-origin machines along with China and other countries depending on client budget and requirement.

16. Are you supplying all kinds of plastic machines?

We supply almost all kinds of plastic bag & tape-related machinery, especially for the packaging industry.

17. Are spare parts available for this machine?

Yes, we provide full spare parts support during and after warranty.

18. After warranty, how much do you charge for service?

After warranty:

1. Service charge is reasonable, based on task.
2. Usually depend on type of work, time, factory distance.

19. Do you supply from only one company?

No, we source machines from multiple verified manufacturers to ensure the best options for each project.

20. Are you supplying from manufacturers directly?

Yes, we directly source from manufacturers, not from middlemen, ensuring:

1. Better pricing
2. Customization
3. Direct support

We are also inviting you to visit our website / facebook / youtube channel to check more details about us.

If there is any assistance for our supplied item or services please feel free to contact with us.
