ZIPPER FILM BLOWING MACHINE

ZIPPER FILM BLOWING MACHINE

1. What is the work of this machine?

A Zipper Film Blowing Machine is a specialized plastic extrusion system designed to produce continuous plastic films with integrated zipper profiles (e.g., for resealable bags, pouches, and packaging). This Machine produces plastic films with integrated zipper profiles (e.g., reclosable bags) by:

Co-extruding molten plastic (LDPE, HDPE, or PP) into a tubular film while simultaneously forming the zipper track.

Blowing and cooling the film into a bubble, then flattening it into double-layered rolls with zippers.

Applications: Food packaging, medical pouches, textile bags, and industrial storage.

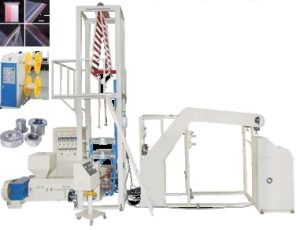

Fig. Zipper Film Blowing Machine.

Key Features & Process:

Extrusion & Blowing: Melts raw materials (LDPE, HDPE, or PP) and extrudes a tubular film. Air is injected to inflate the tube into a bubble, controlling thickness and width.

Zipper Integration: A zipper profile die co-extrudes the zipper track (male/female parts) directly into the film. Some machines use post-attachment methods to seal pre-made zippers onto the film.

Cooling & Flattening: The bubble is cooled by air rings and collapsed into a flat double-layered film with the zipper at the top.

Winding & Slitting: The film is trimmed, slit into rolls, or cut into bags.

Applications:

1. Reclosable food packaging (snacks, frozen foods)
2. Industrial bags (chemicals, fertilizers)
3. Medical & hygiene products (zippered sterilization pouches)

Machine Variations:

Single vs. Multi-Layer: Some machines add barrier layers (EVOH, PA) for enhanced durability.

High-Speed Models: Outputs up to 200 kg/h with widths up to 2,500 mm.

This machine enhances productivity, reduces labor costs, and ensures consistent tape application in high-volume packaging operations.

 2. How many workers are needed to operate it?

Basic operation: 1–2 workers for material loading, monitoring controls, and quality checks.

Automated lines: May require fewer operators due to integrated winding, slitting, and printing units.

3. What is the production capacity?

Output: ~5–25 kg/h (small model-LLCM-55) up to 10–30 kg/h (larger model like LLCM-65).

Speed: 8–25 m/min, with high-speed models reaching 14–15 m/min.

Film width: 50–580 mm, adjustable via die customization.

Film Thickness: 0.04-0.15 mm.

4. What is the electricity cost?

Power consumption: Typically ~25–30kW, varying by model:

Small desktop dispensers: ~25kW.

Voltage: Supports ~110V–440V, depending on region and machine type.

Energy-saving features: Inverter-controlled motors and auto-adjustment systems reduce costs.

5. How much space is needed to install this machine?

Machine Dimension: 6m × 12m × 4.1m (L×W×H) for compact models; larger units may require up to 6m × 12m × 4.1m.

Layout: Requires additional space for auxiliary equipment (e.g., winders, printers).

6. Where can we buy this machine?

Ultimate Corporation 18/2, Sahibagh, Savar, Dhaka-1340, Bangladesh.

7. What is the origin of this machine?

Most machines are manufactured in China (e.g., Wenzhou, Zhejiang, Guangdong), with key components like gearboxes sometimes imported (e.g., Japan-made SACM-645 screws).

8. Do we supply only this machine?

Yes, we supply this machine.

We also offer complete solutions, including:

Auxiliary equipment: Printing units, bag-making machines, slitters.

Customization: Zipper colors, film widths, or biodegradable material compatibility.

Now we supply various types of machine, not just Zipper Film Blowing Machine.

9. How many types of machines do we supply?

Our Supplying Machinery:

Poly Project:

1. LLDPE/LDPE/HDPE/PE/ Film blowing machine
2. Corona Treat machine for film blowing
3. Bottom Cutting Machine
4. Side sealing machine
5. 4 side sealing bag
6. Central sealing bag making machine
7. Pouch bag making machine
8. biodegradable bag making machine
9. (Flexographic) printing machine
10. T Shirt Bag Making Machine
11. Garbage making machine
12. Hand glove making machine
13. Solvent base / Solvent less Lamination machine
14. Roto gravure printing Machine
15. Film Slitting machine
16. Film inspection / Doctoring machine
17. Folding Device

Biodegradable Bag Project:

1. Biodegradable Film Blowing Machine
2. Biodegradable Bag Making Machine
3. Biodegradable Film Printing Machine

Gum Tape project:

1. Semi Automatic Gum Tape Cutting Machine
2. Full Automatic Gum Tape Cutting Machine
3. Gum Tape Printing Machine
4. Gum Tape Coating Machine

 Elastic & needle Loom Project Machine:

1. Sewing Thread cone winding Machine (Manual + Semi Auto)
2. Soft Cone rewinding Machine

PVC / PET project:

1. PVC Shrink film blowing machine
2. PVC shrink film blowing machine for bottle label
3. PVC / PET collar insert & butterfly making machine

Die Cutting & Paper Cutting Machine.

Our Supplying Raw Materials:

1. Plastic resin (PP /LDPE/LLDPE/EVA/HIPS /GPPS (Grade: Film/Injection/Fiber/Yarn/Pipe)
2. OPP Gum Tape
3. Adhesive Tape
4. Ink
5. Thinner
6. Paper (Duplex)
7. Textured Yarn

10. What is the warranty period?

Usually 1 year || 1.5 years || 2 years  warranty for all machine depend on type.

11. Do you have any technicians?

Yes, we have local & international technicians for:

1. Installation
2. Training
3. After-sales service

12. How many years are you in this business?

Ultimate Corporation has been in the plastic machinery trading & service business for several years, with wide experience in Bangladesh market.

13. Who is the boss of this company?

Our company is lead by Engr. Mahabub Hossen Juel.

14. Do you have stock in Bangladesh?

Yes, we maintain some stock in our local warehouse. For customized machines, order-based supply is available.

15. Are you supplying Taiwan machines?

Yes, we supply Taiwan-origin machines along with China and other countries depending on client budget and requirement.

16. Are you supplying all kinds of plastic machines?

We supply almost all kinds of plastic bag & tape-related machinery, especially for the packaging industry.

17. Are spare parts available for this machine?

Yes, we provide full spare parts support during and after warranty.

18. After warranty, how much do you charge for service?

After warranty:

1. Service charge is reasonable, based on task.
2. Usually depend on type of work, time, factory distance.

19. Do you supply from only one company?

No, we source machines from multiple verified manufacturers to ensure the best options for each project.

20. Are you supplying from manufacturers directly?

Yes, we directly source from manufacturers, not from middlemen, ensuring:

1. Better pricing
2. Customization
3. Direct support

We are also inviting you to visit our website / facebook / youtube channel to check more details about us.

If there is any assistance for our supplied item or services please feel free to contact with us.
