CI FLEXO PRESS MACHINE

CI FLEXO PRESS MACHINE

1. What is the work of this machine?

A CI Flexo Press Machine (Central Impression Flexographic Press) is a type of flexographic printing press widely used in the packaging industry for printing on flexible materials such as films, labels, paper, and corrugated boards. Here’s a detailed breakdown of its features, working principle, applications, and advantages:

1. Used for flexographic printing on flexible packaging (e.g., food packaging, labels, plastic bags).
2. Handles multiple colors in a single pass (typically 6-10 colors).
3. Suitable for large-volume production with high precision.
4. Can include additional features like lamination, coating, or die-cutting.

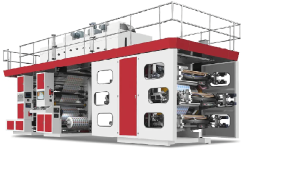

Fig. CI Flexo Press Machine

Key Features of CI Flexo Press Machine:

Central Impression Drum Design:

1. The printing stations are arranged around a single large-diameter central impression cylinder.
2. This ensures precise registration (alignment) and minimizes material distortion during printing.

Suitable for Flexible Substrates:

Works well with thin, stretchable materials like plastic films (PE, PP, BOPP), aluminum foil, and paper.

High-Speed Printing:

Capable of speeds up to 600-1000 meters per minute, depending on the configuration.

Multiple Printing Stations:

1. Typically includes 6-10 color stations for multi-color printing.
2. Can incorporate additional units for laminating, coating, or die-cutting.

 Advanced Ink Systems:

1. Uses water-based, solvent-based, or UV-curable inks.
2. Equipped with chambered doctor blades for precise ink application.

Automated Controls:

Features PLC-based automation, touchscreen interfaces, and web tension control for consistent print quality.

How a CI Flexo Press Works:

Unwinding: The substrate (film/paper) is fed from a roll.

Printing: Each color unit applies ink via an anilox roller and flexo plate.

Drying: Hot air or UV curing units dry the ink between stations.

Finishing: May include lamination, varnishing, or die-cutting.

Rewinding/Slitting: The printed material is rewound or cut into sheets.

Applications of CI Flexo Press:

1. Flexible Packaging (Pouches, bags, wrappers for snacks, beverages)
2. Labels & Stickers (Self-adhesive labels, shrink sleeves)
3. Corrugated Box Printing (High-quality graphics on cardboard)
4. Laminated Products (Food packaging, pharmaceutical films)

Advantages Over Stack or In-Line Flexo Presses:

✔ Better Registration – Due to a single central drum, reducing web movement.
✔ Higher Speed & Efficiency – Suitable for long print runs.
✔ Excellent Print Quality – Ideal for fine details and smooth gradients.
✔ Versatility – Handles thin, heat-sensitive films better than other flexo types.

2. How many workers are needed to operate it?

Standard Operation: 2–4 workers (machine operator, assistant, quality checker, material handler).

Automated Models: May require fewer workers (1–2) if equipped with automatic loading/unloading.

3. What is the production capacity?

Speed: ~200–500 meters per minute (depending on material & design).

Daily Output: ~50,000–150,000 sq. meters (varies with machine size & automation).

4. What is the electricity cost?

Power Consumption: ~20–50 kW (depending on size & features).

Estimated Cost: ~$10–$25 per hour (varies by local electricity rates).

5. How much space is needed to install this machine?

Small Models: ~10m (L) x 5m (W) x 3m (H).

Large Models: ~20m (L) x 8m (W) x 4m (H).

Requires additional space for material storage and drying.

6. Where can we buy this machine?

Ultimate Corporation, 18/2, Sahibagh, Savar, Dhaka-1340, Bangladesh.

7. Origin of the Machine?

Mostly manufactured in China, Taiwan, Italy, Germany, and India.

Chinese machines are cost-effective, while European models offer higher precision.

8. Do We Supply Only This Machine?

Yes, we supply CI Flexo Press machine.

1. Others provide complete packaging lines (printing, laminating, slitting, pouching).
2. Customization options are available based on customer needs.

Now, we supply various types of machine, not just CI Flexo Press Machine.

9.How many types of machines do we supply?

Our Supplying Machinery:

Poly Project.

1. LLDPE/LDPE/HDPE/PE/ Film Blowing Machine
2. Corona Treat machine for film blowing.
3. Bottom Cutting Machine
4. Side sealing machine.
5. 4 side sealing bag
6. Central sealing bag making machine
7. Pouch bag making machine
8. biodegradable bag making machine
9. (Flexographic) printing machine.
10. T Shirt Bag Making Machine
11. Garbage making machine.
12. Hand glove making machine
13. Solvent base / Solvent less Lamination machine
14. Rotogravure printing Machine
15. Film Slitting machine
16. Film inspection / Doctoring machine.
17. Folding Device

Biodegradable Bag Project.

1. Biodegradable Film Blowing Machine
2. Biodegradable Bag Making Machine
3. Biodegradable Film Printing Machine

Gum Tape project

1. Semi Automatic Gum Tape Cutting Machine
2. Full Automatic Gum Tape Cutting Machine
3. Gum Tape Printing Machine
4. Gum Tape Coating Machine

Elastic & needle Loom Project Machine.

1. Sewing Thread cone winding Machine ( Manual + Semi Auto )
2. Soft Cone rewinding Machine.

PVC / PET project.

1. PVC Shrink film blowing machine
2. PVC shrink film blowing machine for bottle label
3. PVC / PET collar insert & butterfly making machine

Die Cutting & Paper Cutting Machine.

Our Supplying Raw Materials:

1. Plastic resin (PP /LDPE/LLDPE/EVA/HIPS /GPPS (Grade: Film/Injection/Fiber/Yarn/Pipe)
2. OPP Gum Tape.
3. Adhesive Tape.
4. Ink
5. Thinner
6. Paper (Duplex)
7. Textured Yarn.

10. What is the warranty period?

Usually 1 year || 1.5 years || 2 years  warranty for all machine depend on type.

11. Do you have any technicians?

Yes, we have local & international technicians for:

1. Installation
2. Training
3. After-sales service

12. How many years are you in this business?

Ultimate Corporation has been in the plastic machinery trading & service business for several years, with wide experience in Bangladesh market.

13. Who is the boss of this company?

Our company is lead by Engr. Mahabub Hossen Juel.

14. Do you have stock in Bangladesh?

Yes, we maintain some stock in our local warehouse. For customized machines, order-based supply is available.

15. Are you supplying Taiwan machines?

Yes, we supply Taiwan-origin machines along with China and other countries depending on client budget and requirement.

16. Are you supplying all kinds of plastic machines?

We supply almost all kinds of plastic bag & tape-related machinery, especially for the packaging industry.

17. Are spare parts available for this machine?

Yes, we provide full spare parts support during and after warranty.

18. After warranty, how much do you charge for service?

After warranty:

1. Service charge is reasonable, based on task.
2. Usually depend on type of work, time, factory distance.

19. Do you supply from only one company?

No, we source machines from multiple verified manufacturers to ensure the best options for each project.

20. Are you supplying from manufacturers directly?

Yes, we directly source from manufacturers, not from middlemen, ensuring:

1. Better pricing
2. Customization
3. Direct support

We are also inviting you to visit our website / facebook / youtube channel to check more details about us.

If there is any assistance for our supplied item or services please feel free to contact with us. We will be glad to assist you.
