HIGH-SPEED COMPUTERIZED COLOR REGISTER ROTOGRAVURE PRINTING MACHINE

HIGH-SPEED COMPUTERIZED COLOR REGISTER ROTOGRAVURE PRINTING MACHINE

1. What is the work of this machine?

The High-Speed Computerized Color Register Rotogravure Printing Machine is an advanced industrial printing system designed for ultra-fast, precision printing on flexible materials like films, foils, laminates, and paper. It is widely used in packaging (food, pharma, labels), decorative printing, and security printing due to its high efficiency, color accuracy, and automation capabilities.This machine is used for:

Precision multi-color printing (up to 8-10 colors) with computerized register control.

Printing on flexible materials like plastic films, paper, foil, and laminates.

Applications in food packaging, labels, gift wraps, laminates, and industrial films.

High-speed, continuous printing with excellent color consistency and sharpness.

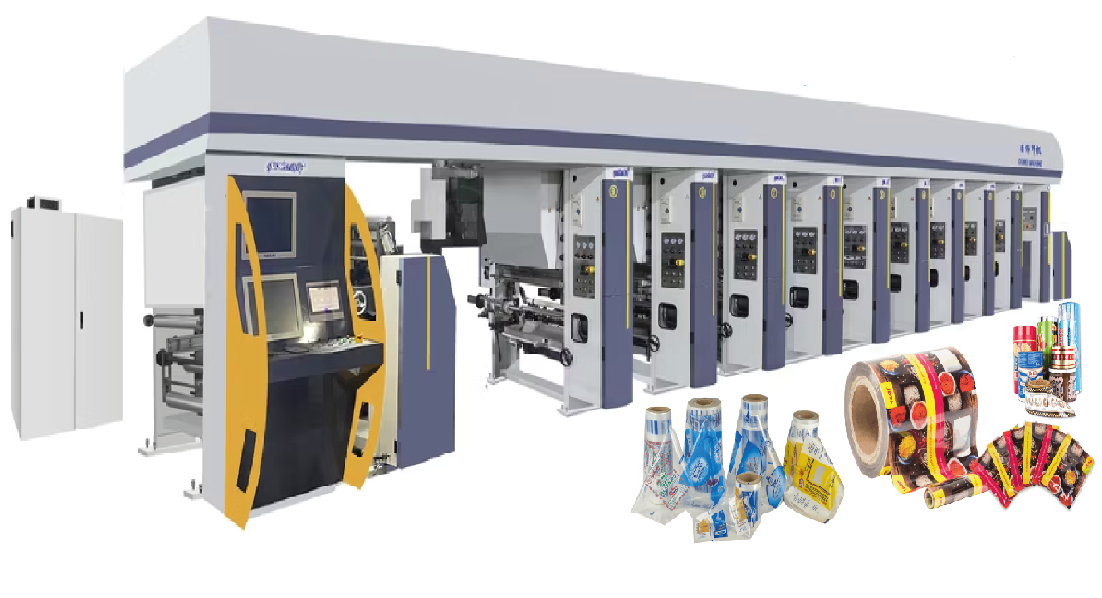

Fig. High-Speed Computerized Color Register Rotogravure Printing Machine.

Key Features & Specifications:

Printing Technology:

1. Rotogravure (Gravure) Printing: Uses engraved cylinders for high-resolution ink transfer.
2. Computerized Register Control: Auto-register (±0.1mm accuracy) with optical sensors for perfect color alignment.
3. Multi-Color Printing: Supports 4 to 12 colors (expandable based on requirements).

Speed & Productivity:

1. Printing Speed: 150–800 meters/minute (varies by model & substrate).
2. Max Web Width: 600mm to 2500mm (customizable).
3. Repeat Length: 300mm–1200mm (adjustable cylinder size).

Automation & Control:

1. PLC + HMI Touchscreen – Fully automated operation with preset job memory.
2. Auto Tension Control – Ensures smooth substrate movement.
3. Web Guiding System – Prevents misalignment during high-speed printing.
4. Remote Monitoring & Diagnostics – IoT-enabled models for predictive maintenance.

Ink & Drying System:

1. Ink Types: Solvent-based, water-based, or UV-curable inks.
2. Doctor Blade System – Precision ink application with adjustable pressure.
3. Drying System:

• 1. Hot Air Dryers (for solvent-based inks).
  2. UV Curing (for instant drying in UV models).
  3. Infrared (IR) Drying (for energy efficiency).

Substrate Compatibility:

1. Films: BOPP, PET, CPP, PE, PVC.
2. Foil & Laminates: Aluminum foil, metallized films.
3. Paper & Labels: Coated paper, synthetic labels.

Applications:

✅ Flexible Packaging (Pouches, bags, wrappers)
✅ Labels & Stickers (Shrink sleeves, barcode labels)
✅ Laminated Tubes & Sachets (Toothpaste, cosmetics)
✅ Security Printing (Holograms, banknotes)
✅ Decorative Films (Wallpaper, furniture laminates)

Advantages Over Conventional Printing:

✔ Ultra-High Speed – Up to 800 m/min for mass production.
✔ Superior Print Quality – 150–400 LPI resolution for sharp graphics.
✔ Minimal Waste – Auto-register reduces misprints.
✔ Long Print Runs – Engraved cylinders last for millions of impressions.
✔ Eco-Friendly Options – Water-based & low-VOC inks available.
