ROTOGRAVURE PRINTING MACHINE

ROTOGRAVURE PRINTING MACHINE

1. What is the work of this machine?

A rotogravure printing machine is a high-speed, precision printing press primarily used for large-volume printing jobs on flexible materials like plastic films, paper, paperboard, and foil. It is commonly used for packaging (food, pharmaceuticals, labels), magazines, and decorative laminates.

1. Flexible Packaging (Food, Pharma, Consumer Goods).
2. Labels & Stickers.
3. Newspapers & Magazines.
4. Decorative Laminates & Wallpapers.
5. Prints high-quality, consistent images using an engraved cylinder.
6. Suitable for long print runs due to its durability and speed.
7. Uses solvent-based or water-based inks for vibrant colors.
8. Can print on both sides (if configured as a CI press – Central Impression or Stack type).

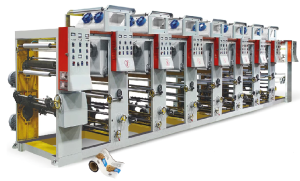

Fig. Rotogravure Printing Machine.

Key Components of a Rotogravure Printing Machine:

Engraved Cylinder:

1. 1. The core of the process, typically made of steel or copper, with tiny cells (engraved pits) that hold ink.
   2. Engraving methods include electromechanical, laser, or chemical etching.

Inking System:

1. 1. 1. A trough supplies ink to the cylinder.
      2. A doctor blade removes excess ink, leaving ink only in the engraved cells.

Impression Roller: Presses the substrate (e.g., film, paper) against the engraved cylinder to transfer the ink.

Drying System: Hot air or UV drying ensures fast ink setting for high-speed printing.

Substrate Feeding & Rewinding: Unwinds the material (e.g., plastic film, paper) before printing and rewinds it after drying.

Advantages of Rotogravure Printing:

✔ High-quality prints with fine details and rich colors.
✔ Excellent for long runs (millions of impressions) without quality loss.
✔ Works on various materials (flexible packaging, labels, magazines, etc.).
✔ Consistent output due to durable cylinders.

Disadvantages:

✖ High setup cost (cylinder engraving is expensive).
✖ Not economical for short runs.
✖ Longer setup time compared to flexography or digital printing.

Applications:

1. Packaging (food, pharma, flexible plastics)
2. Publishing (magazines, catalogs)
3. Decorative printing (wallpaper, laminates)
4. Security printing (banknotes, certificates)

2. How many workers are needed to operate it?

1–2 skilled operators (for setup, ink management, and monitoring).

1–2 assistants (for material loading/unloading and quality checks).

Maintenance technician (periodic checks).

Total: 3–5 workers per shift depending on automation level.

3. What is the production capacity?

Speed: ~5–60 meters/minute (depends on material & design).

Daily Output: ~7,200–80,000 sqm (24-hour operation).

Monthly Capacity: ~0.2–2 million sqm (continuous production).

4. What is the electricity cost?

Power Consumption: ~50–62 kW (varies with size and automation).

Estimated Cost:

1. Per Hour: ~$5–10 (depending on local electricity rates).
2. Per Month: ~$150–300 (running 12 hours/day).

5. How much space is needed to install this machine?

Small Machines: ~9000mm (L) × 2200mm (W) × 2500mm (H).

Large CI Presses: ~9000mm (L) × 2700m (W) × 2500m (H).

Requires additional space for drying, unwinding/rewinding, and storage.

6. Where can we buy this machine?

Ultimate Corporation, 18/2, Sahibagh, Savar, Dhaka-1340, Bangladesh.

7. What is the origin of this machine?

Modern machines come from China, Taiwan, Japan, India and Europe (Switzerland / Italy).

8. Do we supply only this machine?

Yes, we supply standalone Rotogravure printing machine.

Optional Add-ons:

1. 1. Lamination unit
   2. Coating unit
   3. Slitting & die-cutting
   4. Autoloaders for reduced labor

Now we supply various types of machine, not just Rotogravure Printing Machine.

9. How many types of machines do we supply?

Our Supplying Machinery:

Poly Project:

1. LLDPE/LDPE/HDPE/PE/ Film blowing machine
2. Corona Treat machine for film blowing.
3. Bottom Cutting Machine
4. Side sealing machine.
5. 4 side sealing bag
6. Central sealing bag making machine
7. Pouch bag making machine
8. biodegradable bag making machine
9. (Flexographic) printing machine.
10. T Shirt Bag Making Machine
11. Garbage making machine.
12. Hand glove making machine
13. Solvent base / Solvent less Lamination machine
14. Rotogravure printing Machine
15. Film Slitting machine
16. Film inspection / Doctoring machine.
17. Folding Device

Biodegradable Bag Project:

1. Biodegradable Film Blowing Machine
2. Biodegradable Bag Making Machine
3. Biodegradable Film Printing Machine

Gum Tape project:

1. Semi Automatic Gum Tape Cutting Machine
2. Full Automatic Gum Tape Cutting Machine
3. Gum Tape Printing Machine
4. Gum Tape Coating Machine

Elastic & needle Loom Project Machine:

1. Sewing Thread cone winding Machine ( Manual + Semi Auto )
2. Soft Cone rewinding Machine.

PVC / PET project:

1. PVC Shrink film blowing machine
2. PVC shrink film blowing machine for bottle label
3. PVC / PET collar insert & butterfly making machine

Die Cutting & Paper Cutting Machine.

Our Supplying Raw Materials:

1. Plastic resin (PP /LDPE/LLDPE/EVA/HIPS /GPPS (Grade: Film/Injection/Fiber/Yarn/Pipe)
2. OPP Gum Tape
3. Adhesive Tape
4. Ink
5. Thinner
6. Paper (Duplex)
7. Textured Yarn

10. What is the warranty period?

Usually 1 year || 1.5 years || 2 years  warranty for all machine depend on type.

11. Do you have any technicians?

Yes, we have local & international technicians for:

1. Installation
2. Training
3. After-sales service

12. How many years are you in this business?

Ultimate Corporation has been in the plastic machinery trading & service business for several years, with wide experience in Bangladesh market.

13. Who is the boss of this company?

Our company is lead by Engr. Mahabub Hossen Juel.

14. Do you have stock in Bangladesh?

Yes, we maintain some stock in our local warehouse. For customized machines, order-based supply is available.

15. Are you supplying Taiwan machines?

Yes, we supply Taiwan-origin machines along with China and other countries depending on client budget and requirement.

16. Are you supplying all kinds of plastic machines?

We supply almost all kinds of plastic bag & tape-related machinery, especially for the packaging industry.

17. Are spare parts available for this machine?

Yes, we provide full spare parts support during and after warranty.

18. After warranty, how much do you charge for service?

After warranty:

1. Service charge is reasonable, based on task.
2. Usually depend on type of work, time, factory distance.

19. Do you supply from only one company?

No, we source machines from multiple verified manufacturers to ensure the best options for each project.

20. Are you supplying from manufacturers directly?

Yes, we directly source from manufacturers, not from middlemen, ensuring:

1. Better pricing
2. Customization
3. Direct support

We are also inviting you to visit our website / facebook / youtube channel to check more details about us.

If there is any assistance for our supplied item or services please feel free to contact with us.
